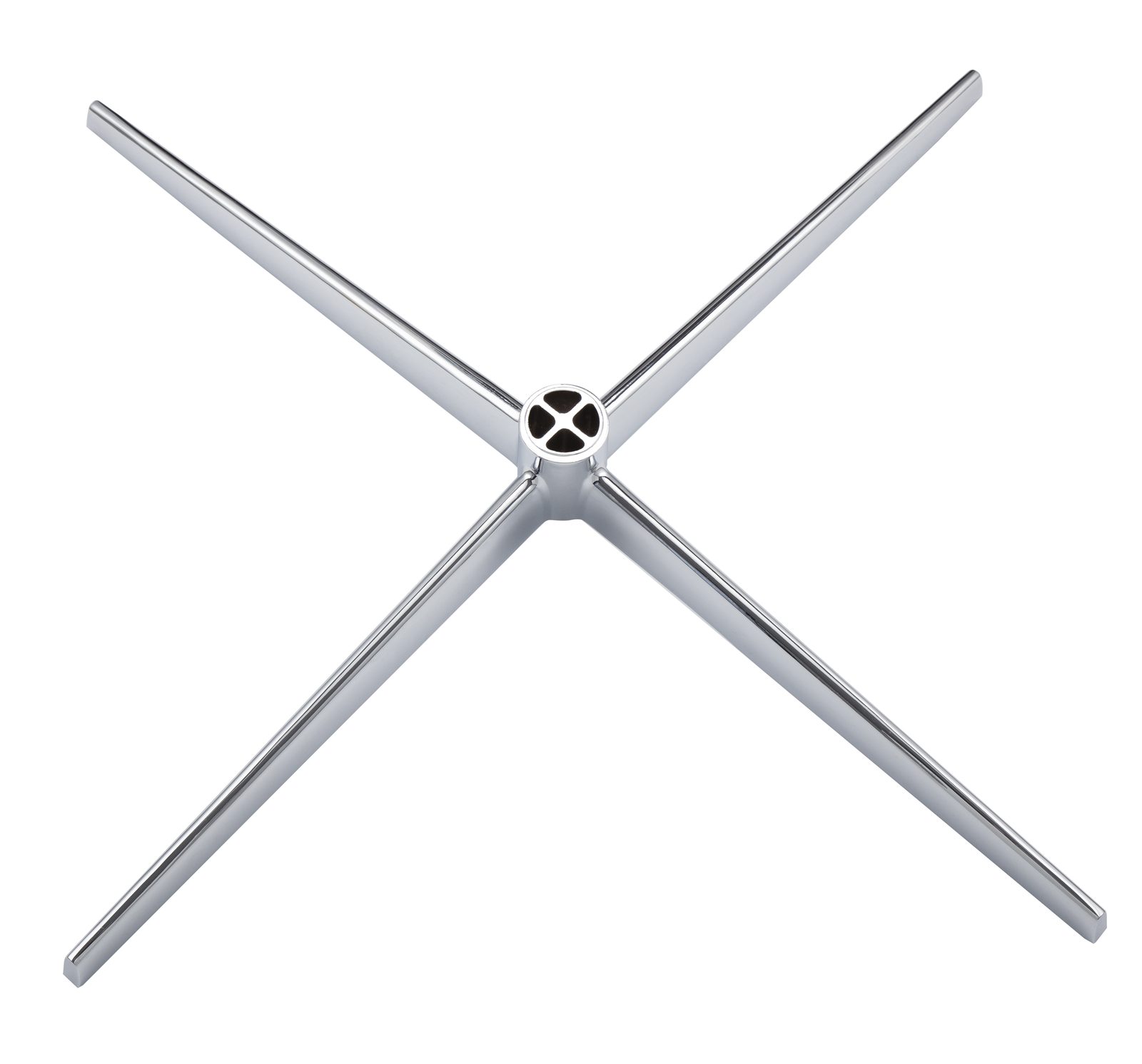

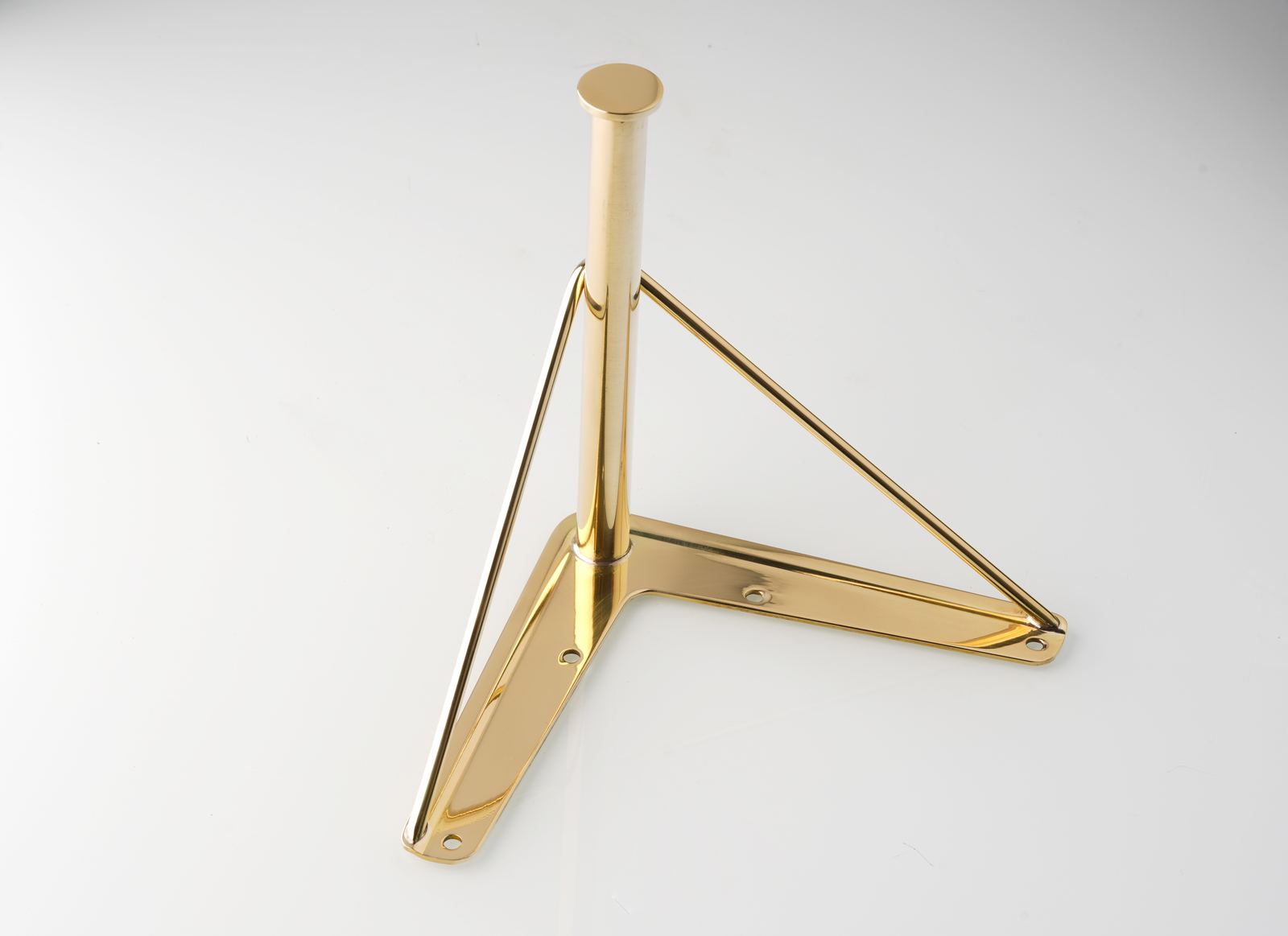

Brass
Punching, folding, bending, welding and polishing. Brass welding and polishing is our strongest capability — very smooth weld seams, polished to a full mirror finish. Plate to 15 mm.
OEM precision metal manufacturing · Est. 2007
We hold 0.01 mm
and we hold it every time.
Brass, stainless, plated, laser-welded and CNC-machined components for US and European OEMs. Send a drawing today — you’ll be talking to an engineer who reads GD&T, in fluent English, not a sales desk that forwards your email.
- Tightest CNC tolerance
- 0.01mm
- Max punching force
- 800ton
- Laser cutting thickness
- 25mm
- Minimum order
- 500pcs
- Rush lead time
- 15days
No translation layer
Your engineer talks to our engineer. In English.
The usual China sourcing problem is not price or capability — it is the four-day round trip between your question and a useful answer, through a salesperson who has to go ask the workshop what you meant.
That does not happen here. Our engineering team works in fluent technical English and reads your drawings directly — tolerances, GD&T callouts, weld symbols, surface finish specs, material grades in AISI or ASTM. Ask why a radius is causing a draw problem and the answer comes from the person who would actually run the tool, in the same email thread, the same day.
If the geometry will cause a production problem, we tell you before you commit — not after the first article fails.
- DrawingsAutoCAD · SolidWorks · STEP · IGES · PDF
- Read nativelyGD&T · weld symbols · finish callouts
- Material gradesAISI · ASTM · AA — not only GB
- Reply timeOne business day
- You speak toEngineering, not a sales desk
What we make
Five product families, one finish standard.
Every family below leaves the plant with the surface treatment already done. You do not need a second vendor to plate, polish or coat it.

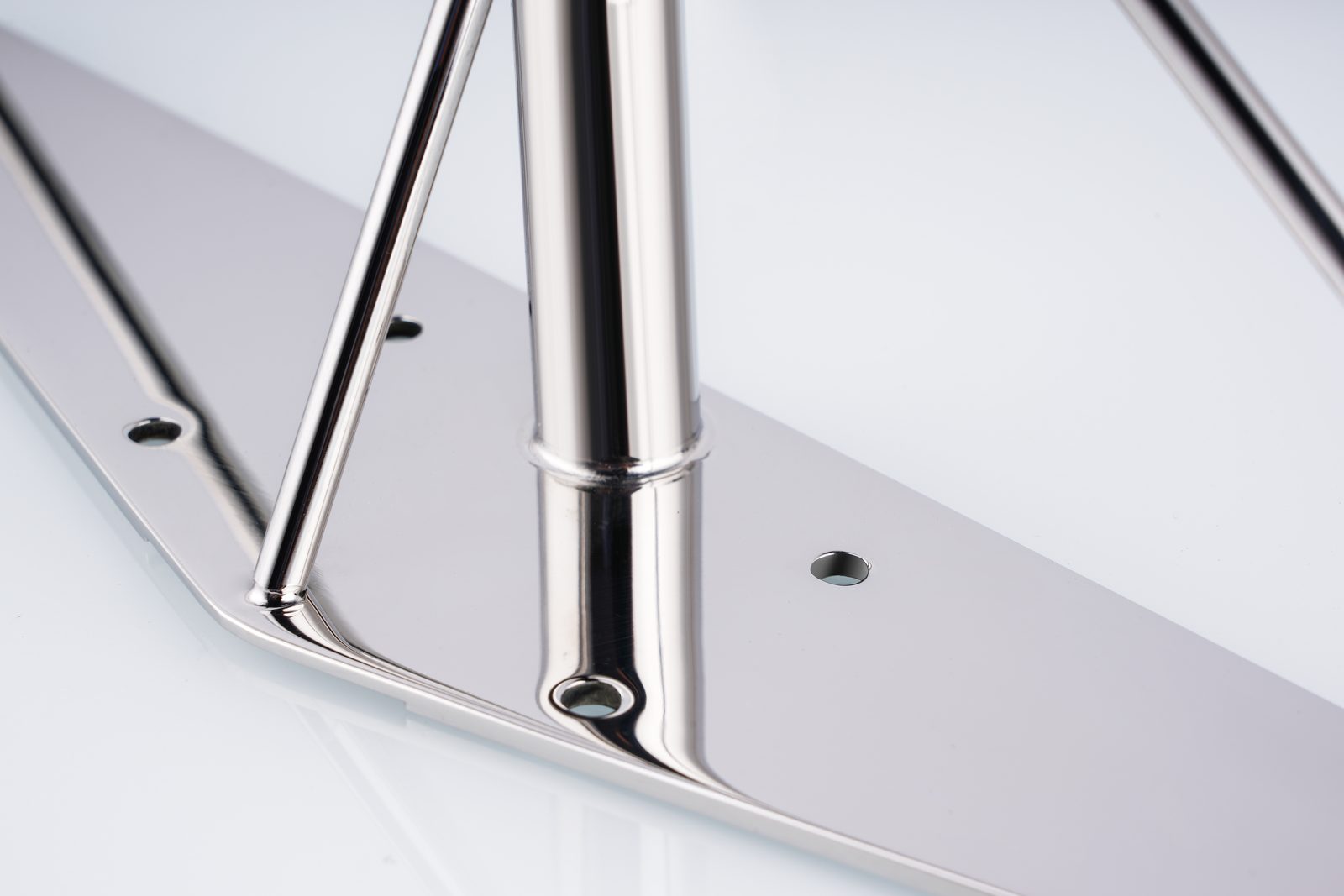

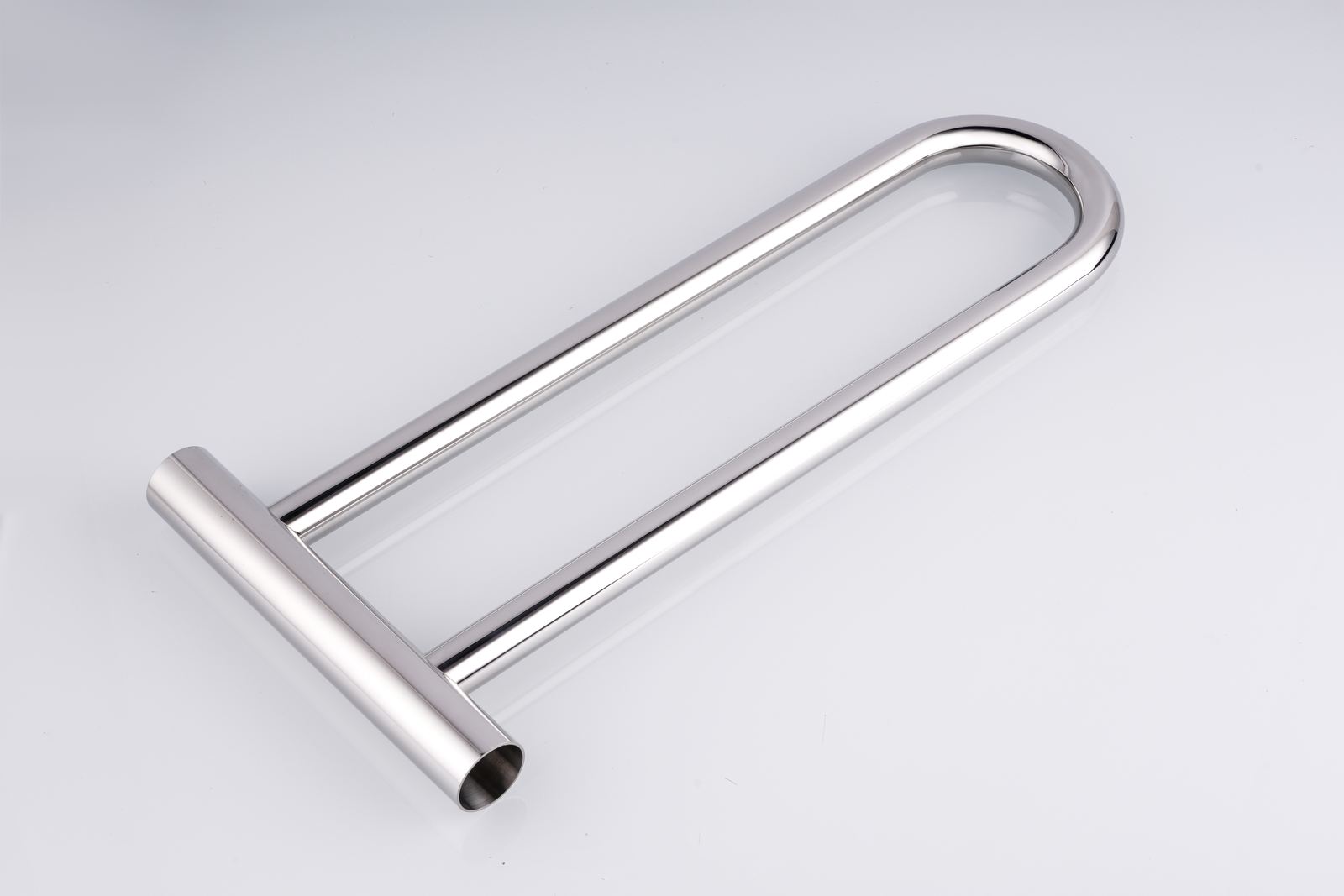

Stainless steel
Jig welding and laser welding are our primary methods. Punching to 800 tons, welding to 25 mm plate. Ships brushed or mirror-polished.

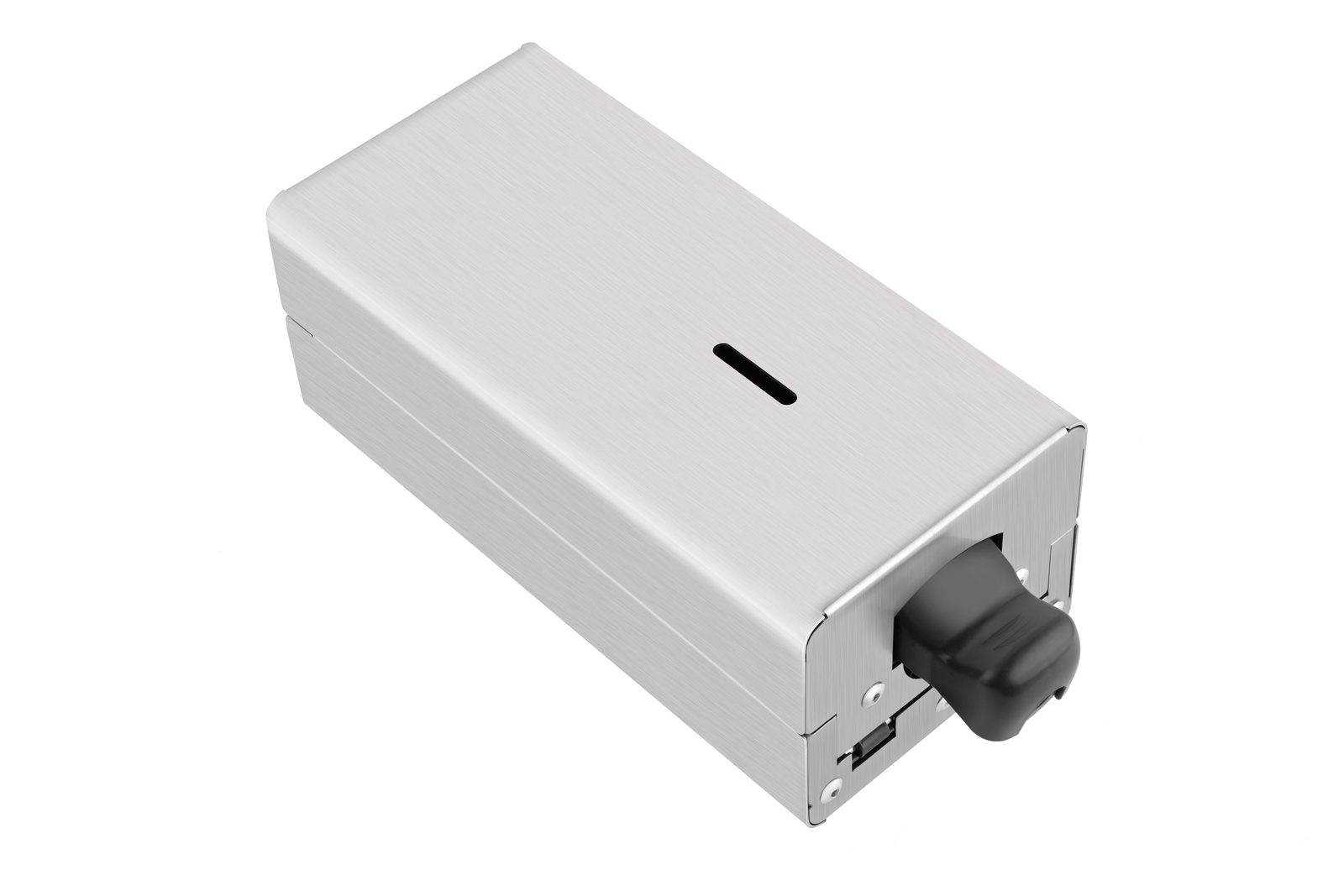

Plated & coated
Two plating lines in-house — chrome to 3 m × 0.5 m, anodizing to 1 m × 1 m — plus a digitally controlled powder-coating line.

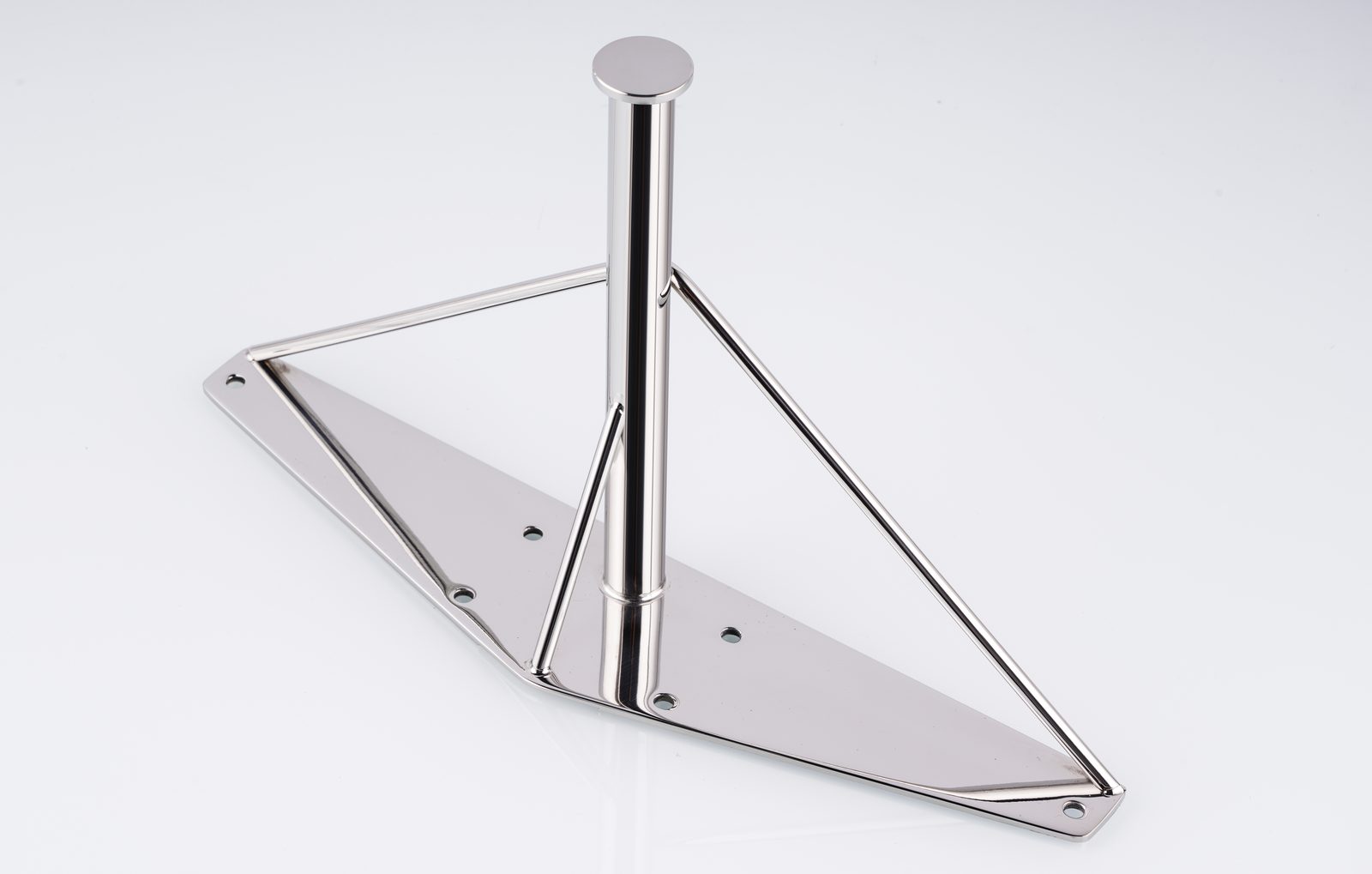

Laser welded
Six robotic laser welders running stainless, carbon steel and aluminium alloy to 4 mm. Seam width adjustable to your requirement.

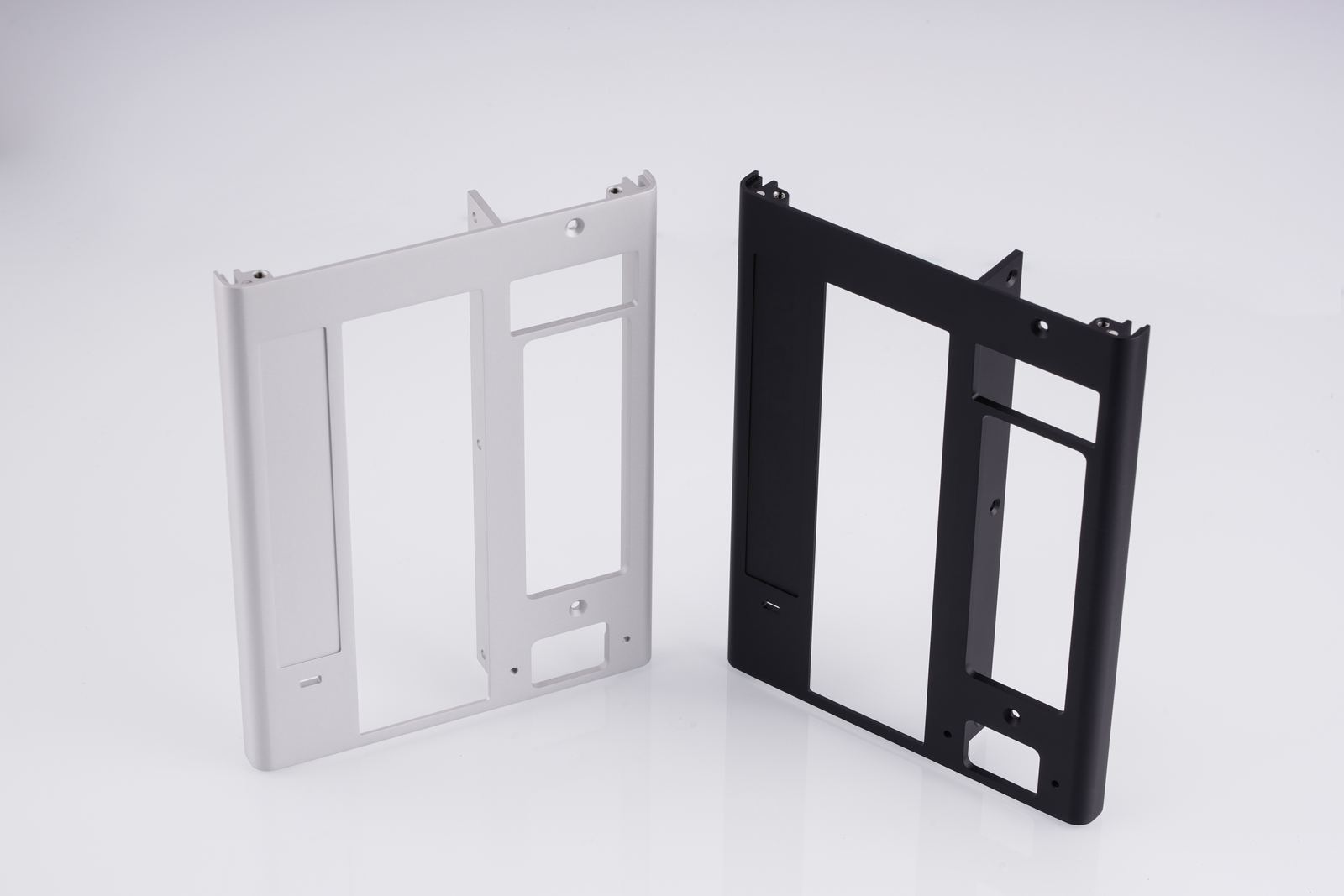

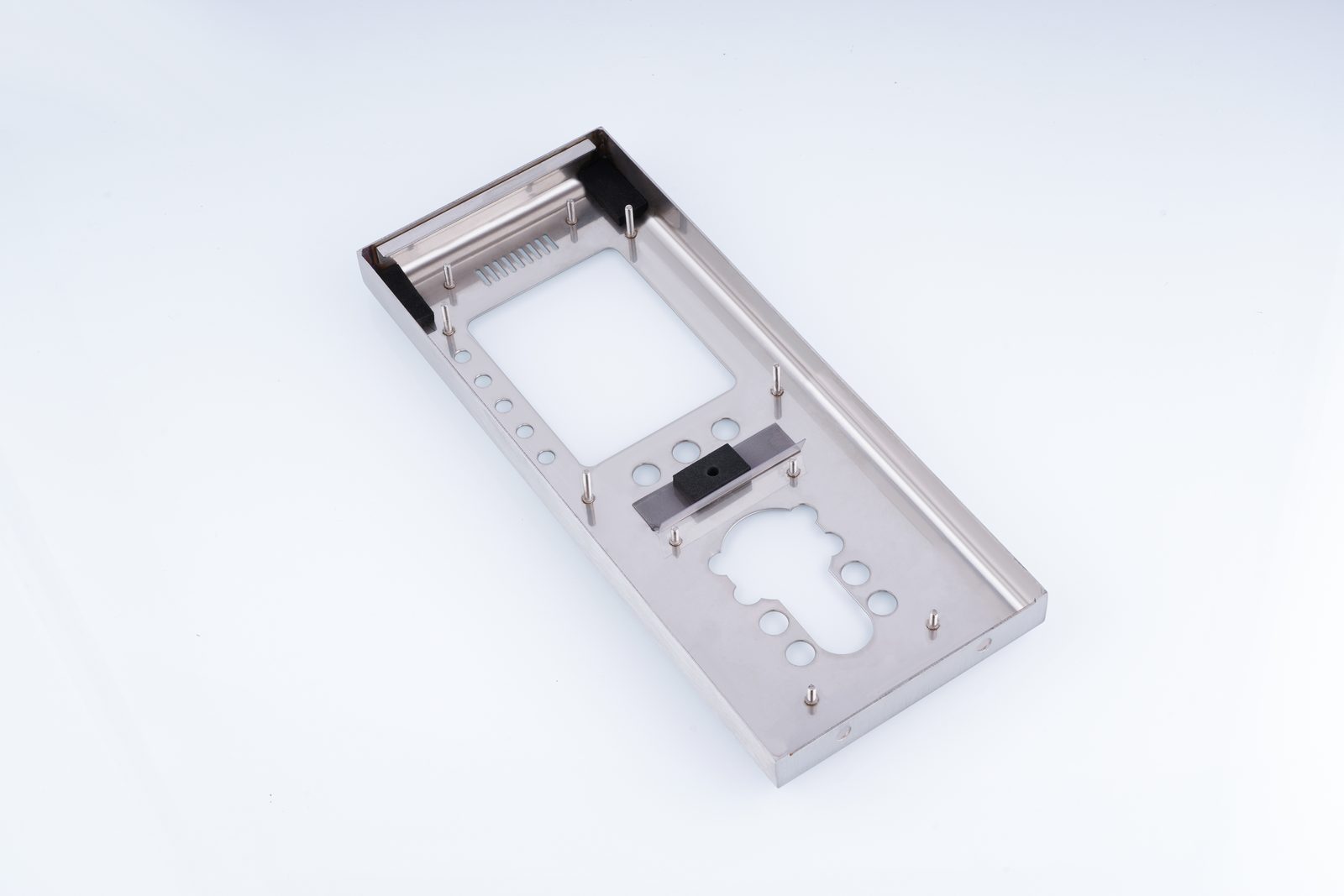

CNC machined
Sixteen 4-axis CNC machines holding ±0.01 mm, up to 1.2 m × 0.8 m. Spindle to 28,000 rpm for a superfine surface straight off the tool.
Engineering & tooling
A six-person engineering team builds our punching, deep-drawn, folding and tube-bending tooling in-house, plus every inspection, welding and milling jig. AutoCAD and SolidWorks, 2D and 3D.
The shop floor
Nine workshops. Every number verified.
This is the equipment list a sourcing engineer actually screens on. No adjectives.

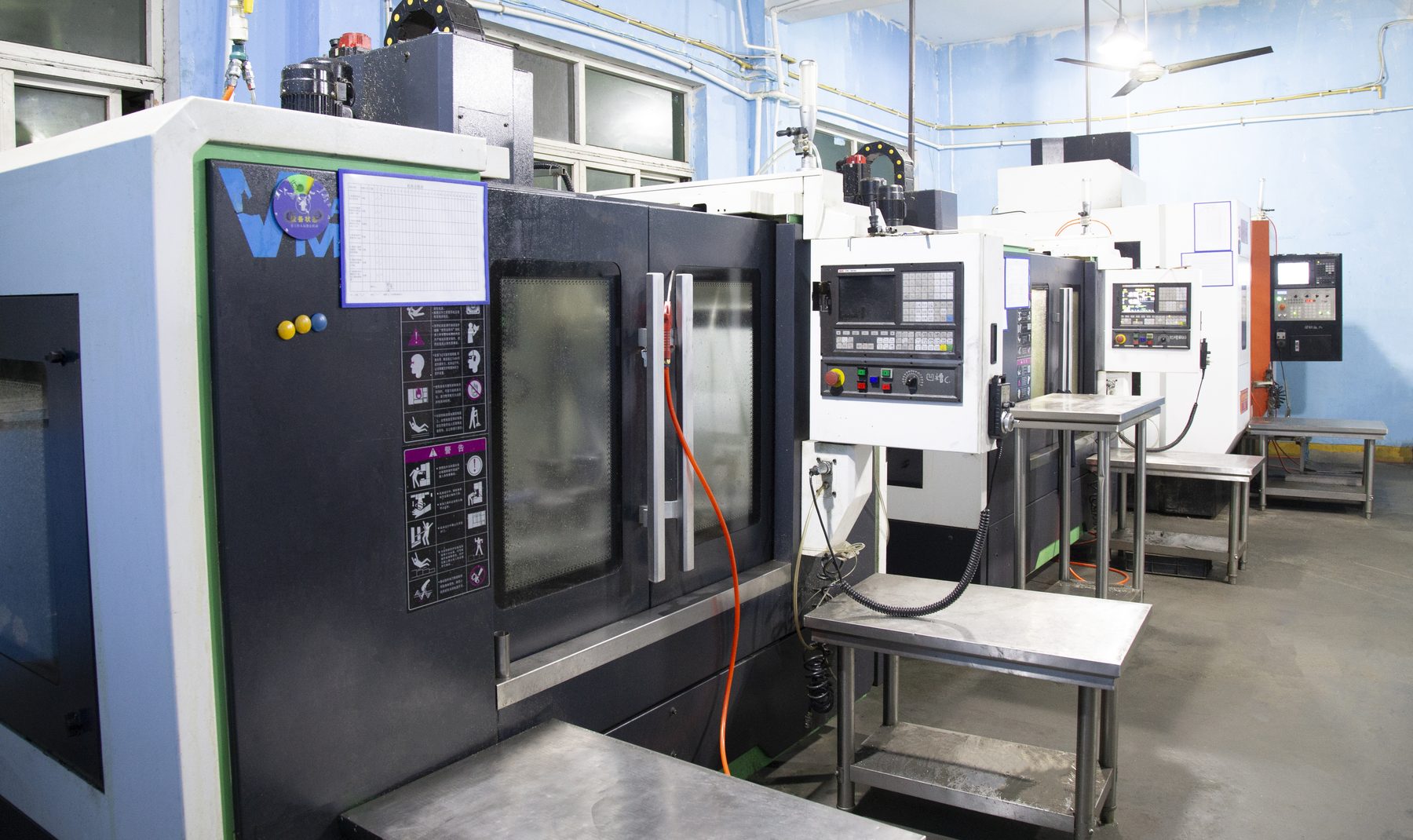

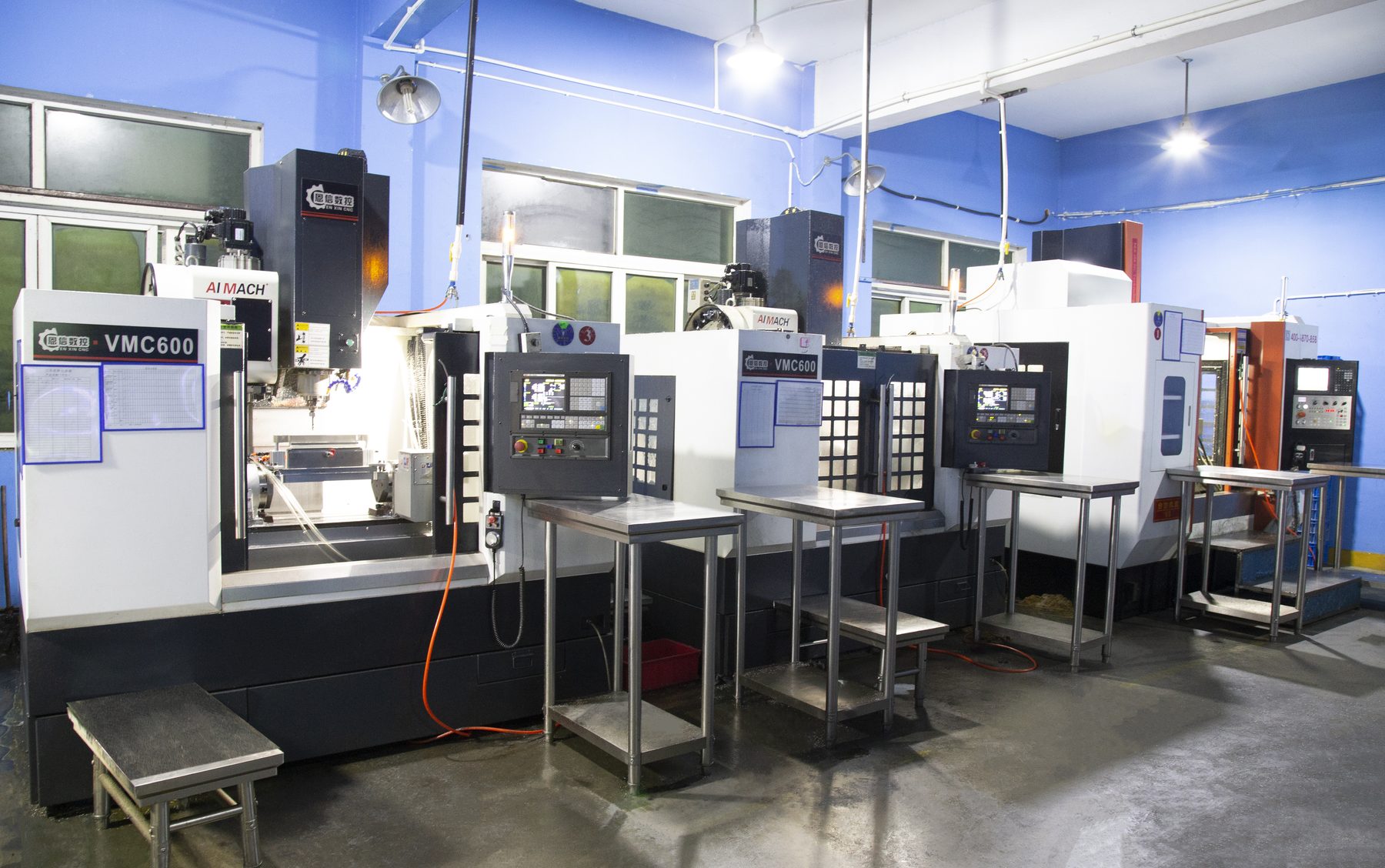

16machines

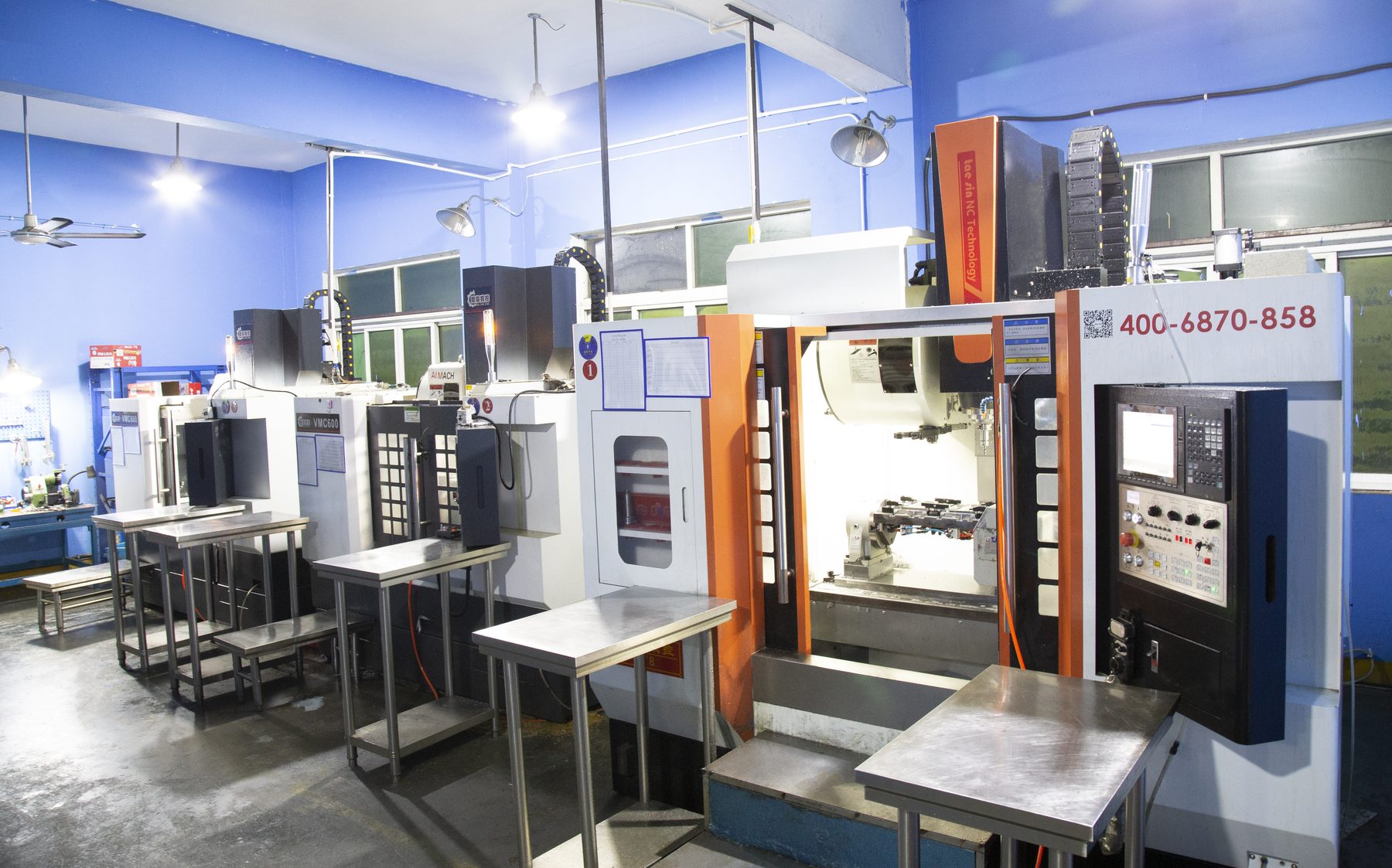

CNC workshop
Sixteen 4-axis CNC machines for aluminium, stainless, brass and carbon steel. ±0.01 mm, up to 1.2 m × 0.8 m, superfine surface finish.
800ton

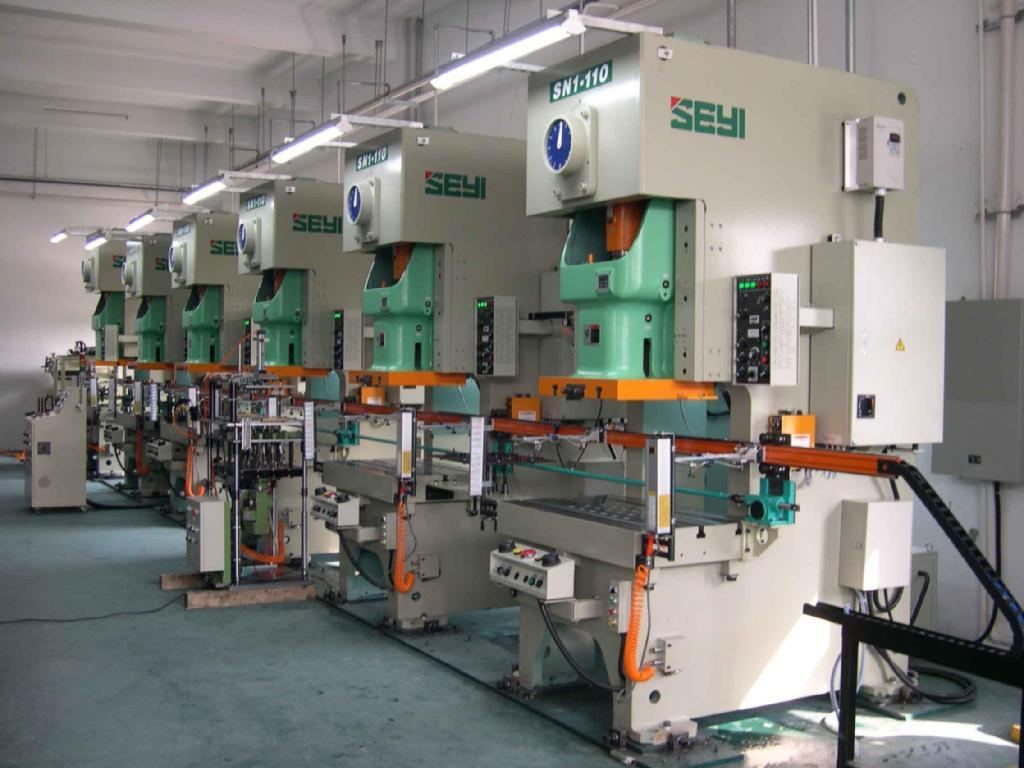

Punching
Eighteen SEYI CNC punching machines to 8 mm plate at ±0.05 mm, plus six hydraulic presses to 800 tons.
25mm

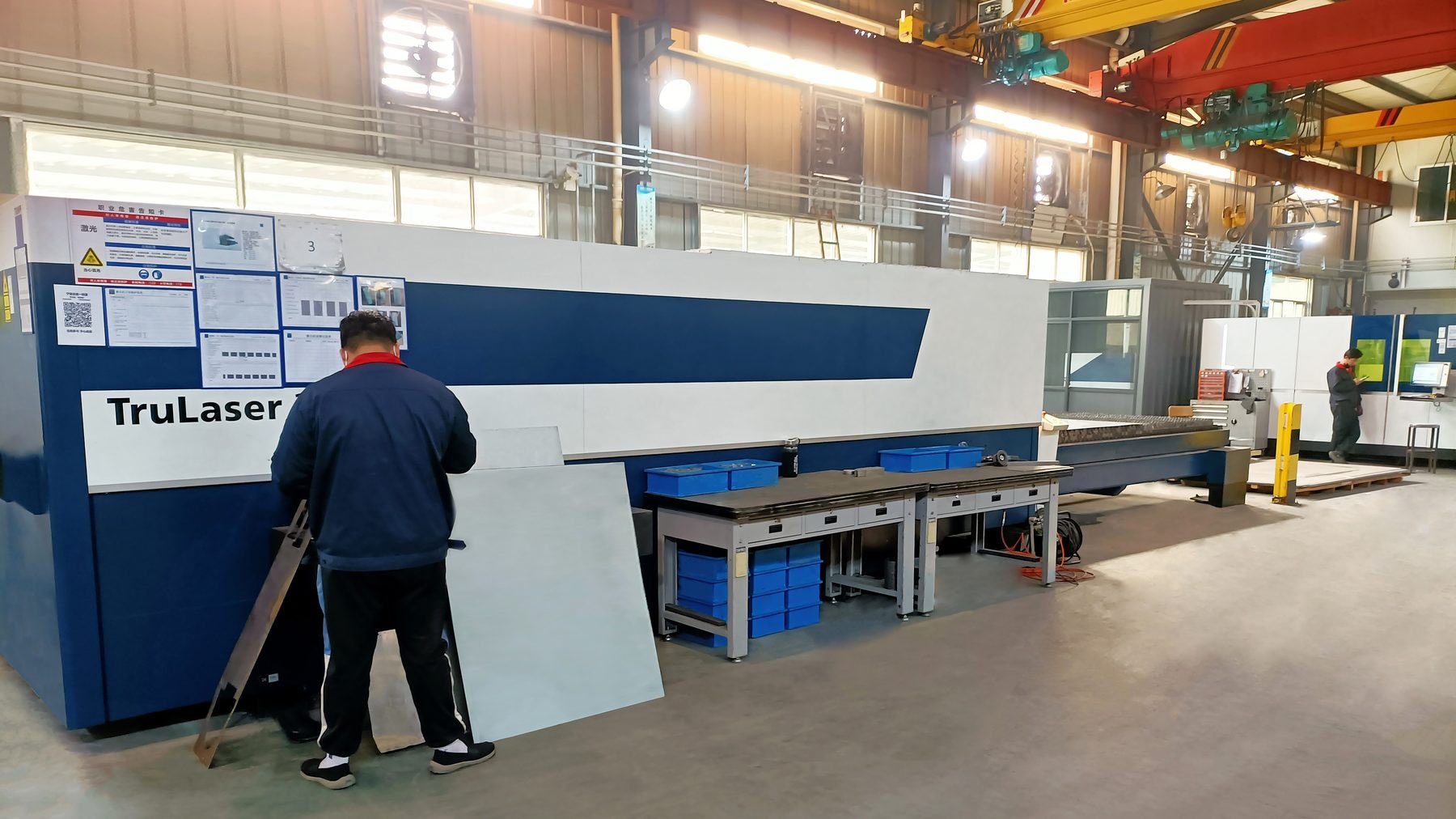

Laser cutting
Plate to 25 mm at ±0.1 mm, on a TRUMPF TruLaser imported from Germany.
6laser + 4 robot

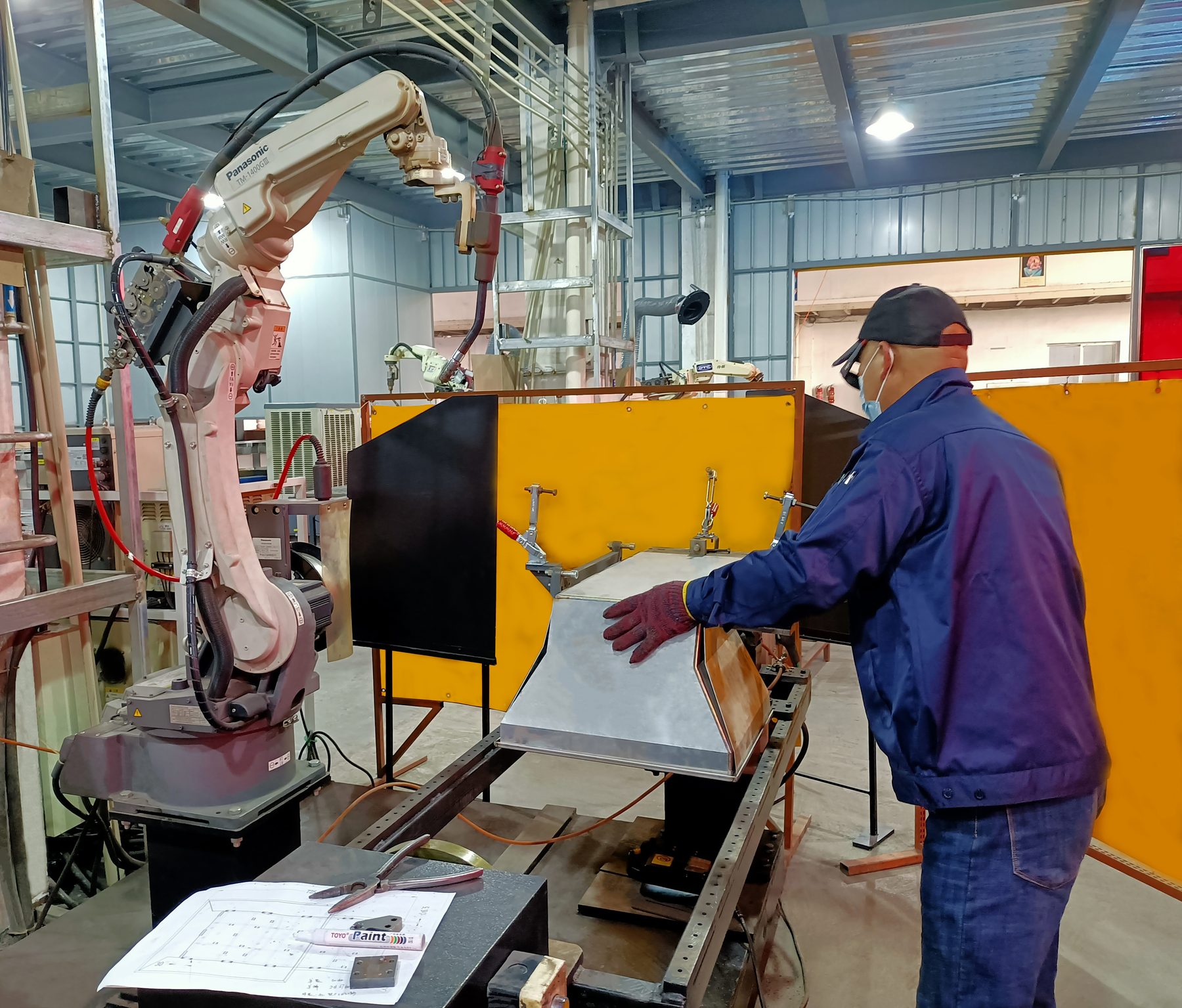

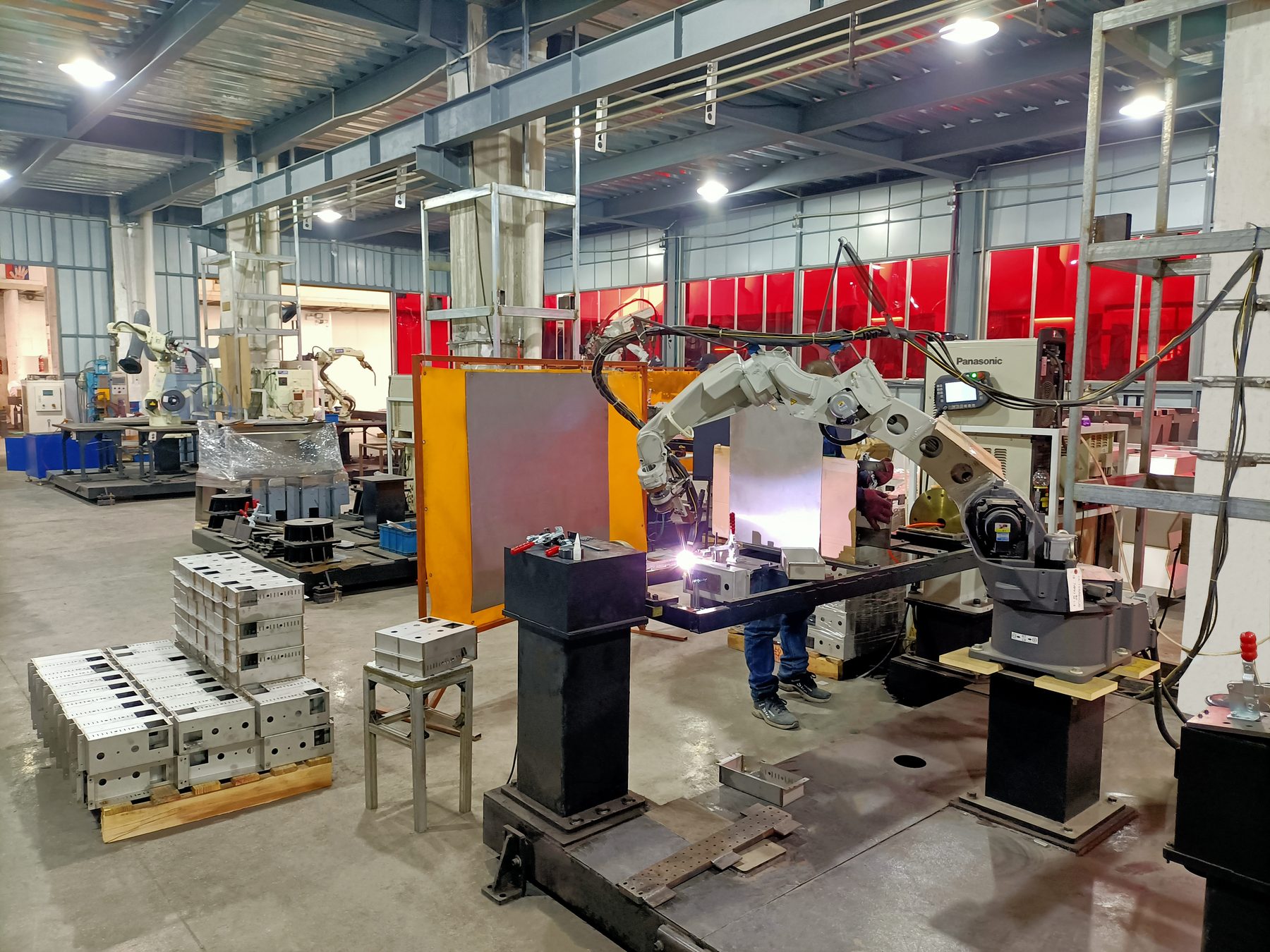

Welding workshop
Six laser welders, four Panasonic TIG/MIG robots at ±0.05 mm, fifteen manual stations. Aluminium, stainless, steel and brass. Jigs built to your drawing.
±0.2degree

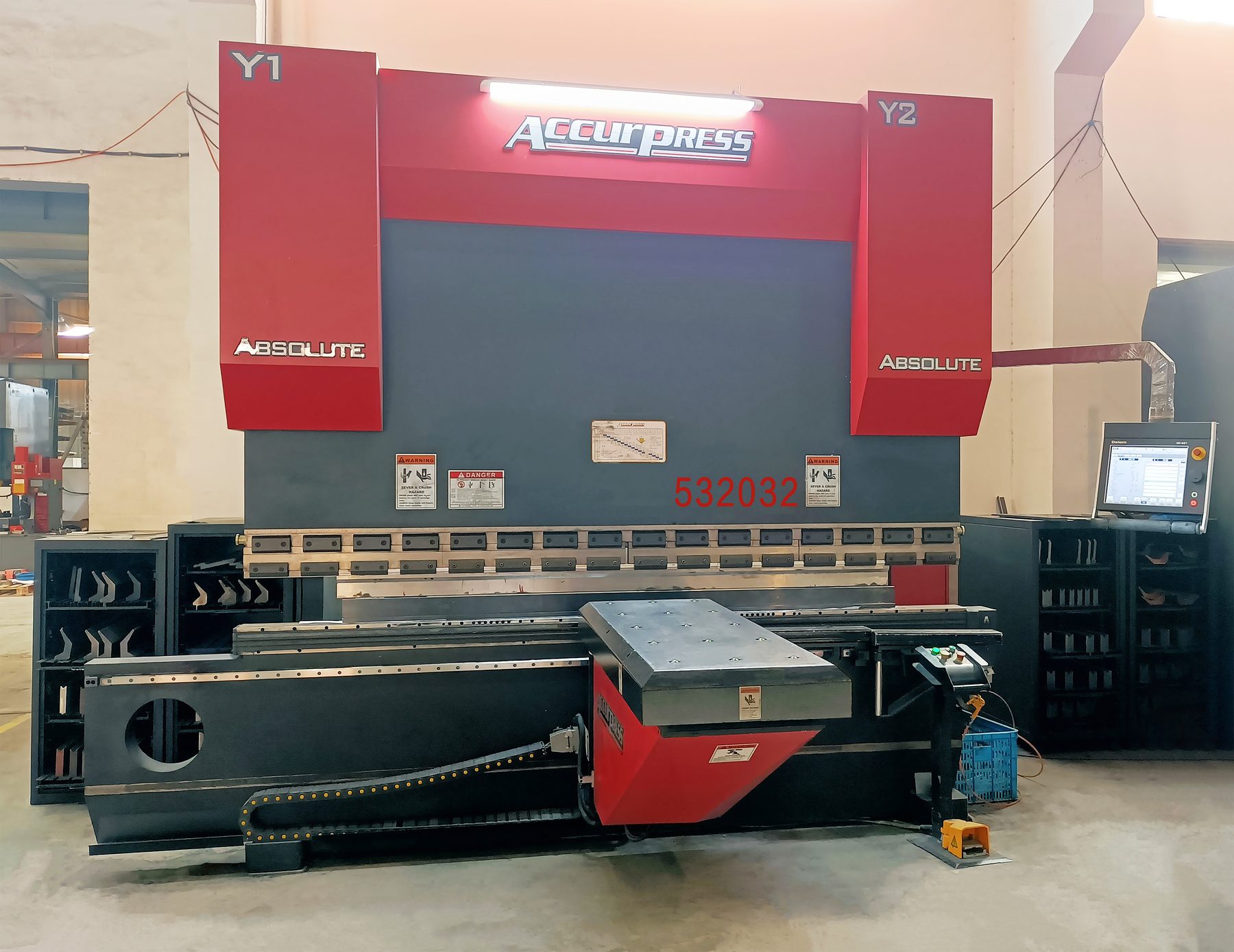

Digital folding
Three ACCURPRESS CNC brakes. Parts to 4 m at ±0.2°. Flexible jigs leave almost no fold mark on the visible face.
±0.02mm flatness
Flatness correction
MAHT digital measuring and correction system, holding plate to ±0.02 mm flatness up to 15 mm thick.
0.01mm verified

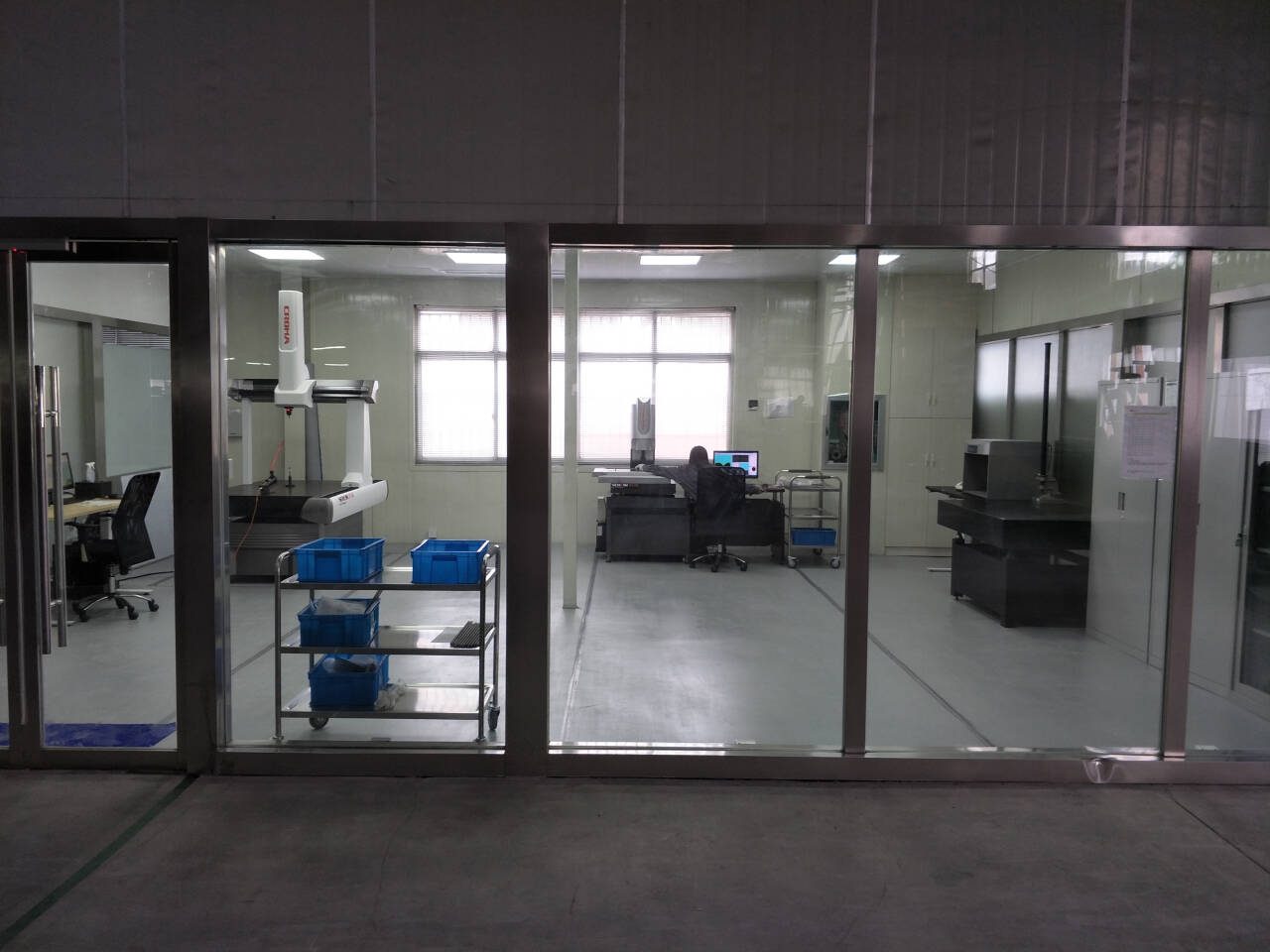

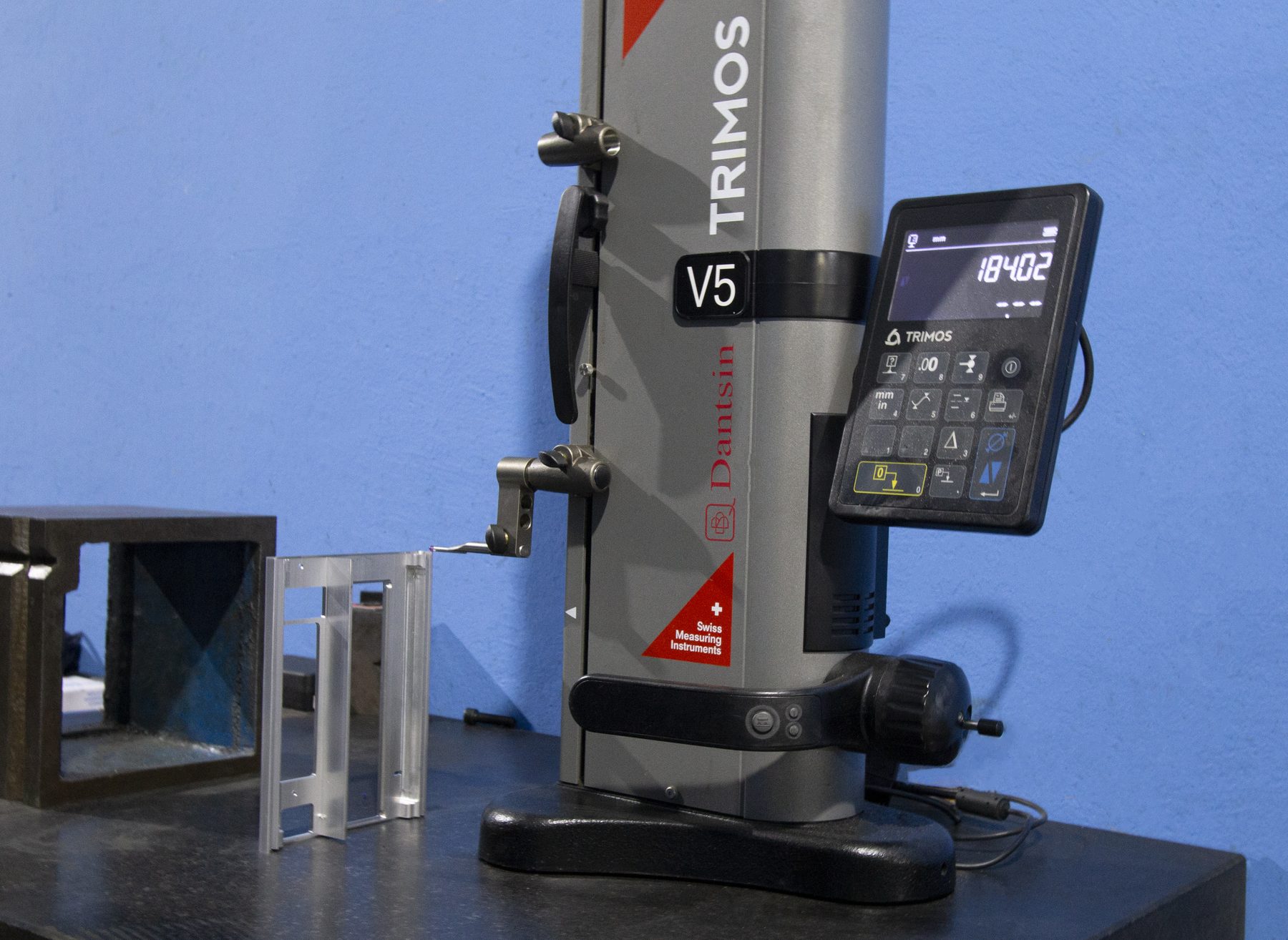

QC inspection room
3D projector for dimensional checks to 0.01 mm. Height measurement on a Trimos V5 (Switzerland) and a Mars (Germany).
10wire cutters

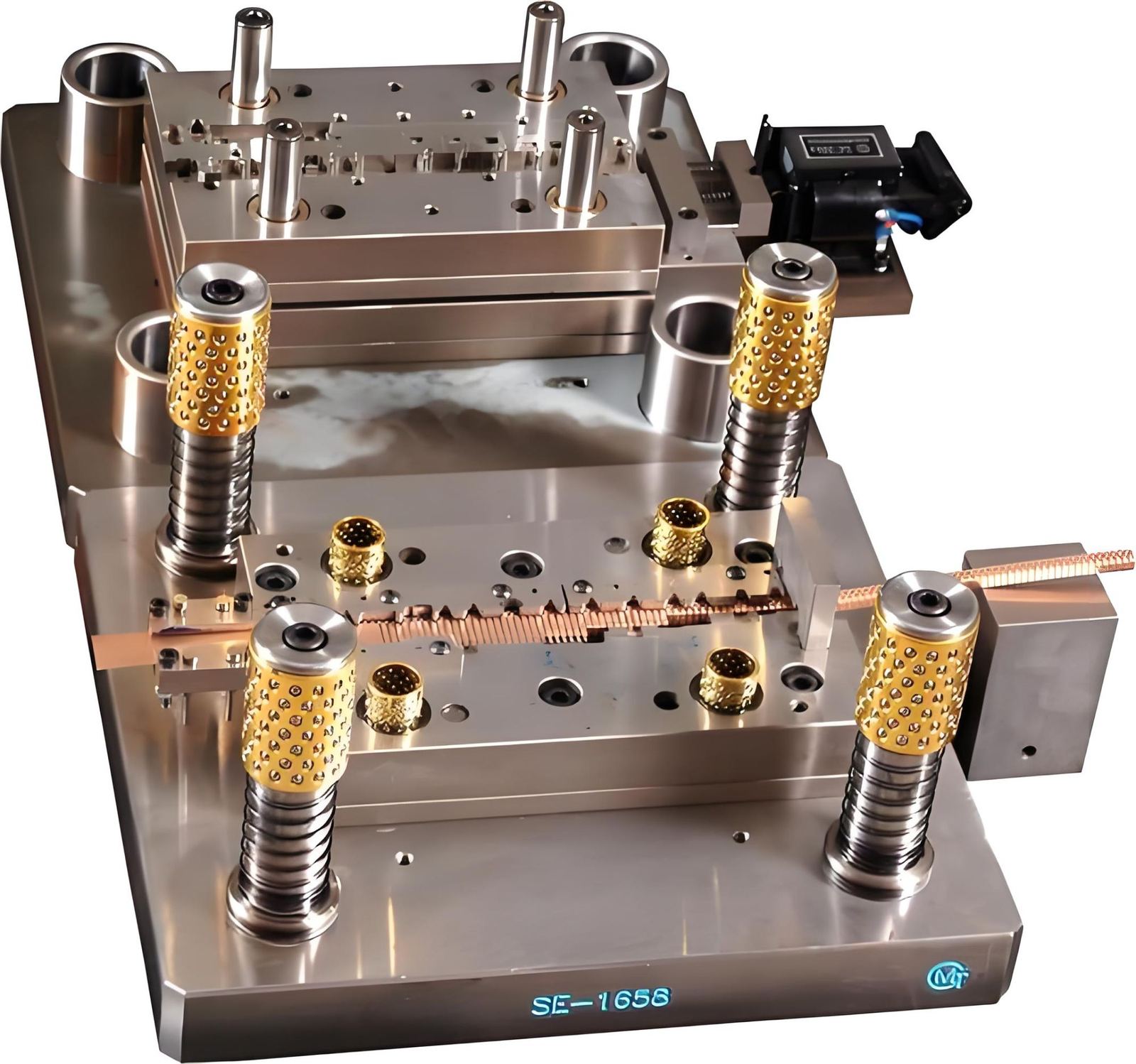

Tooling workshop
Ten wire-cutting machines at 0.01 mm and two CNC mills. Punching tooling and jigs are made on site, not bought in.
CNCdeburring

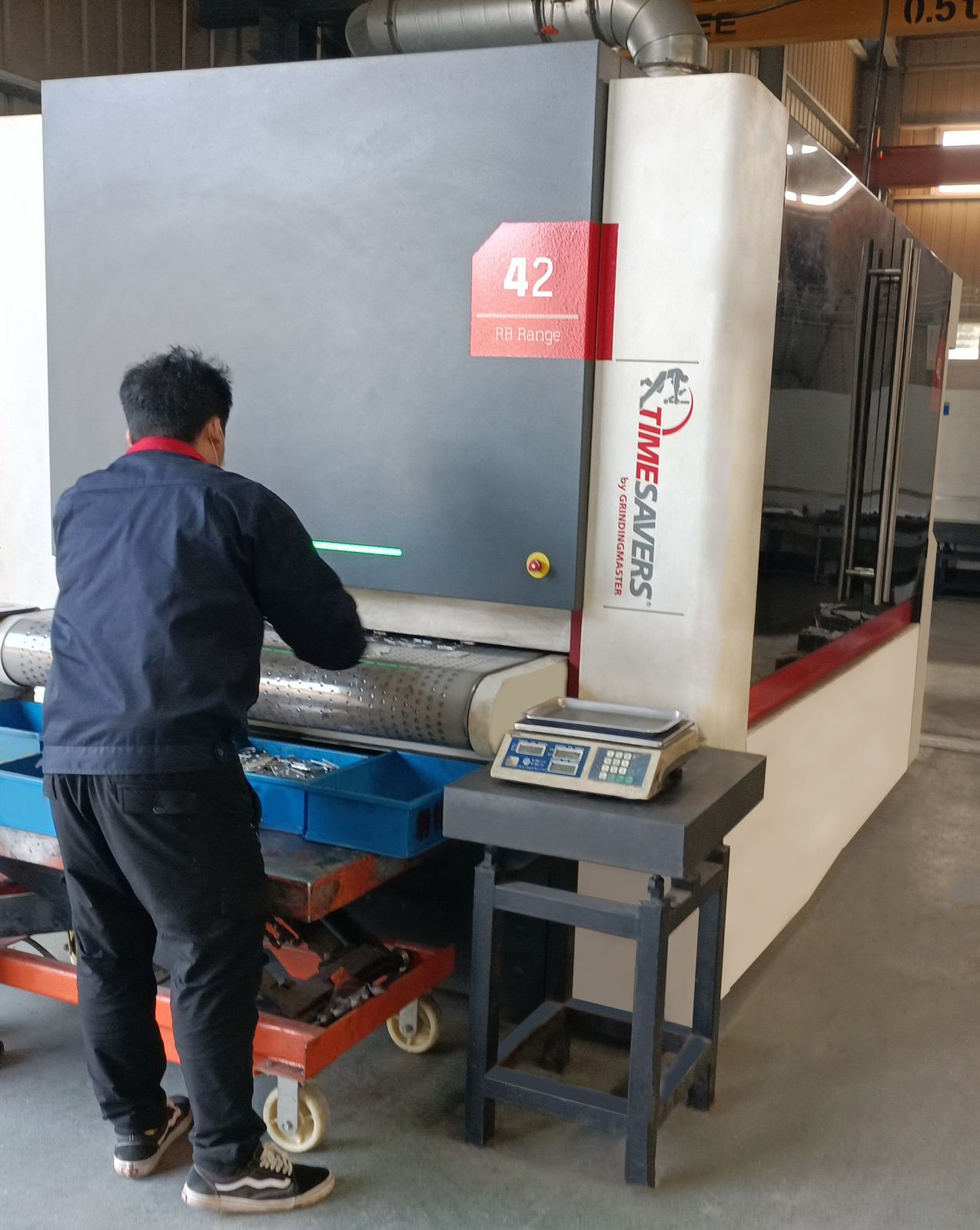

Burr removing
TIMESAVERS digitally controlled deburring runs every plate edge to a consistent, verified smoothness.

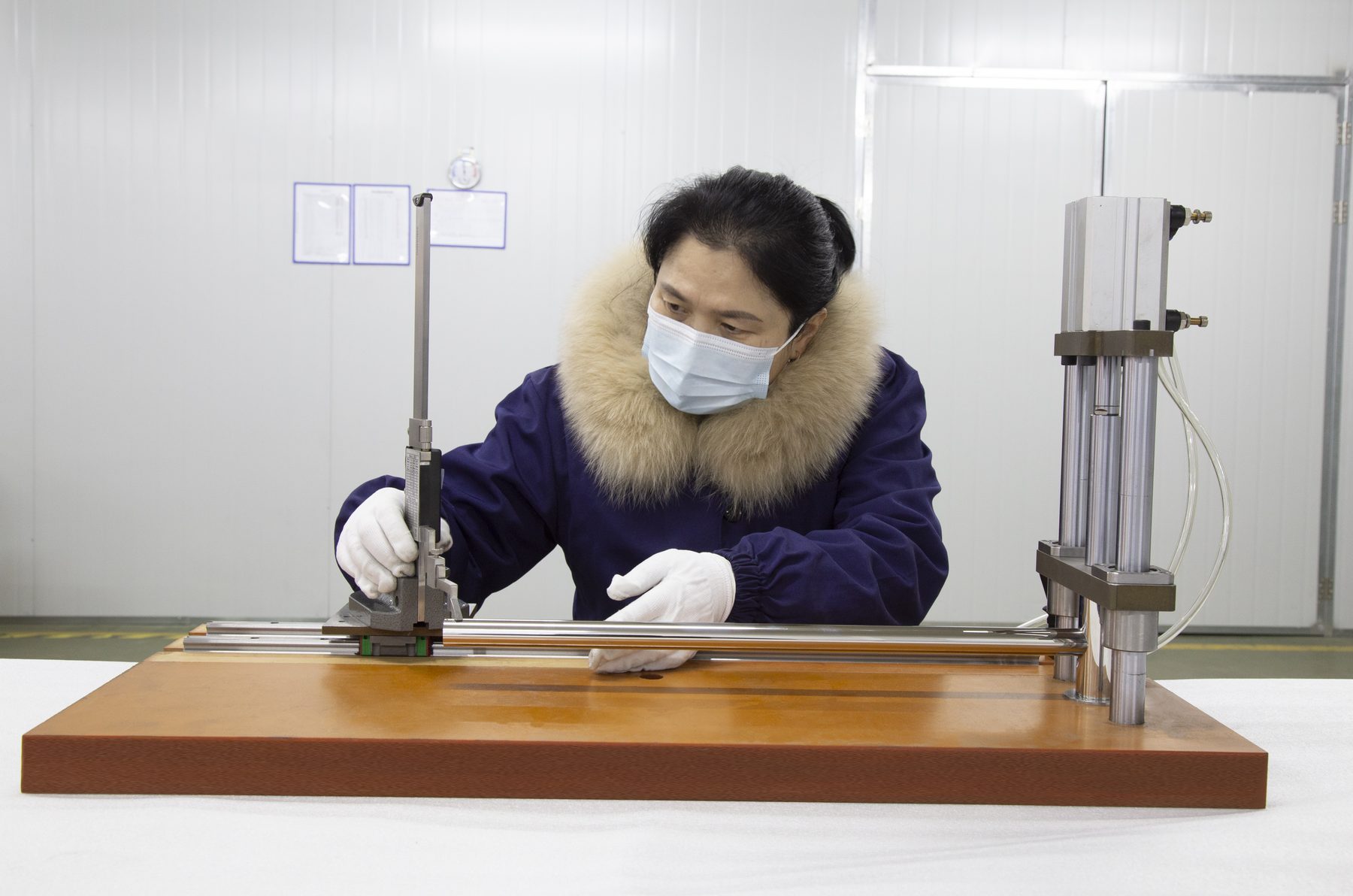

Before it ships

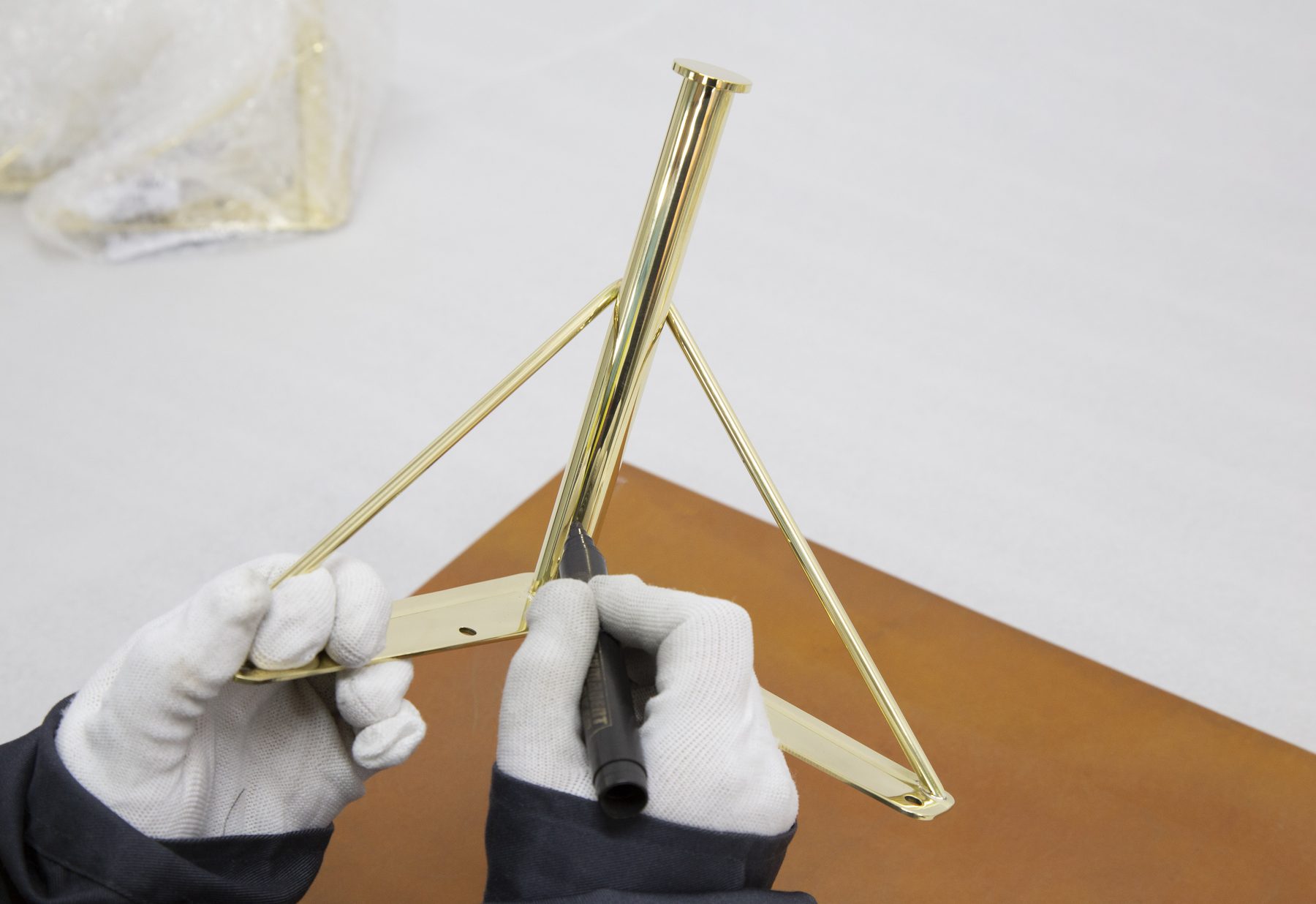

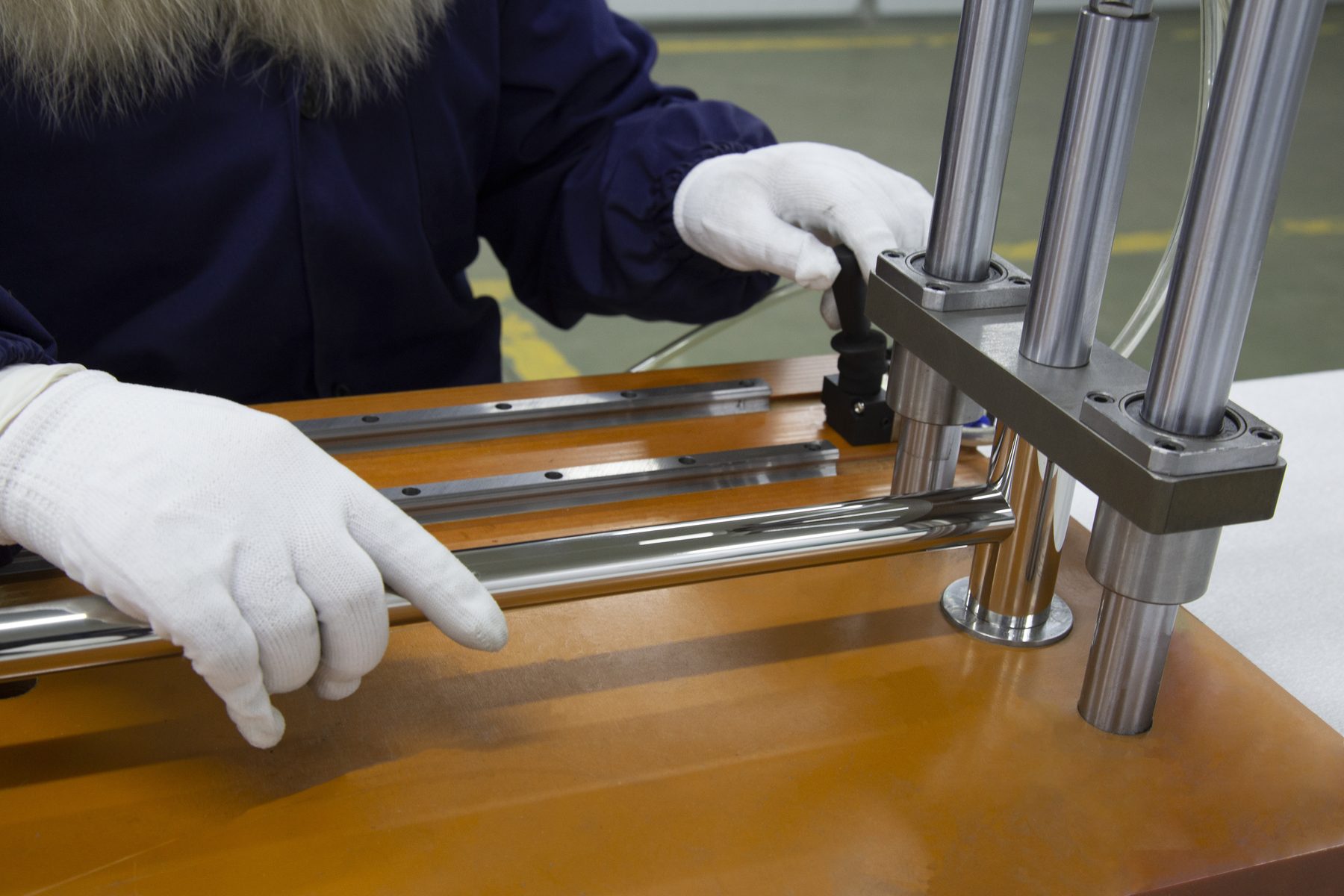

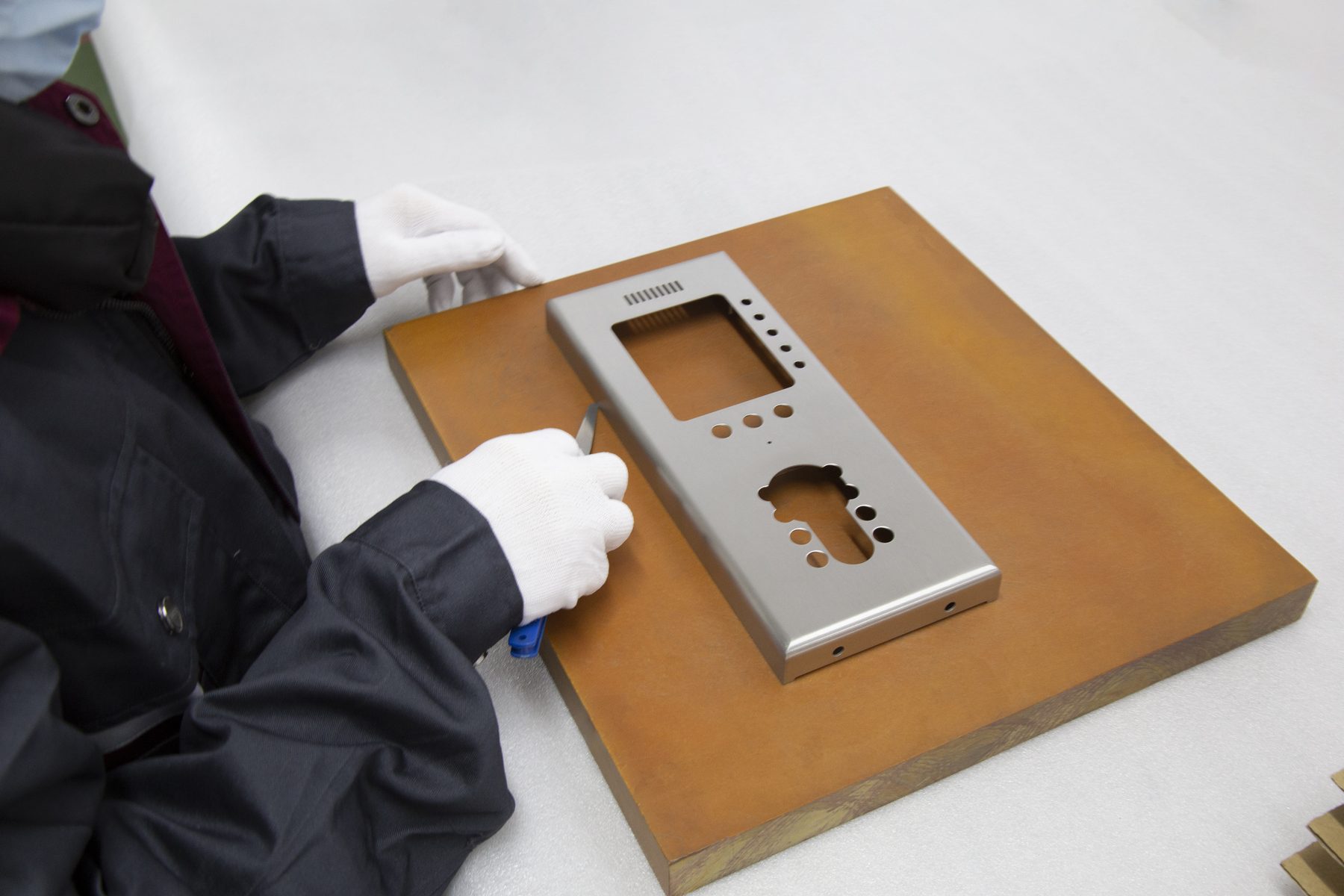

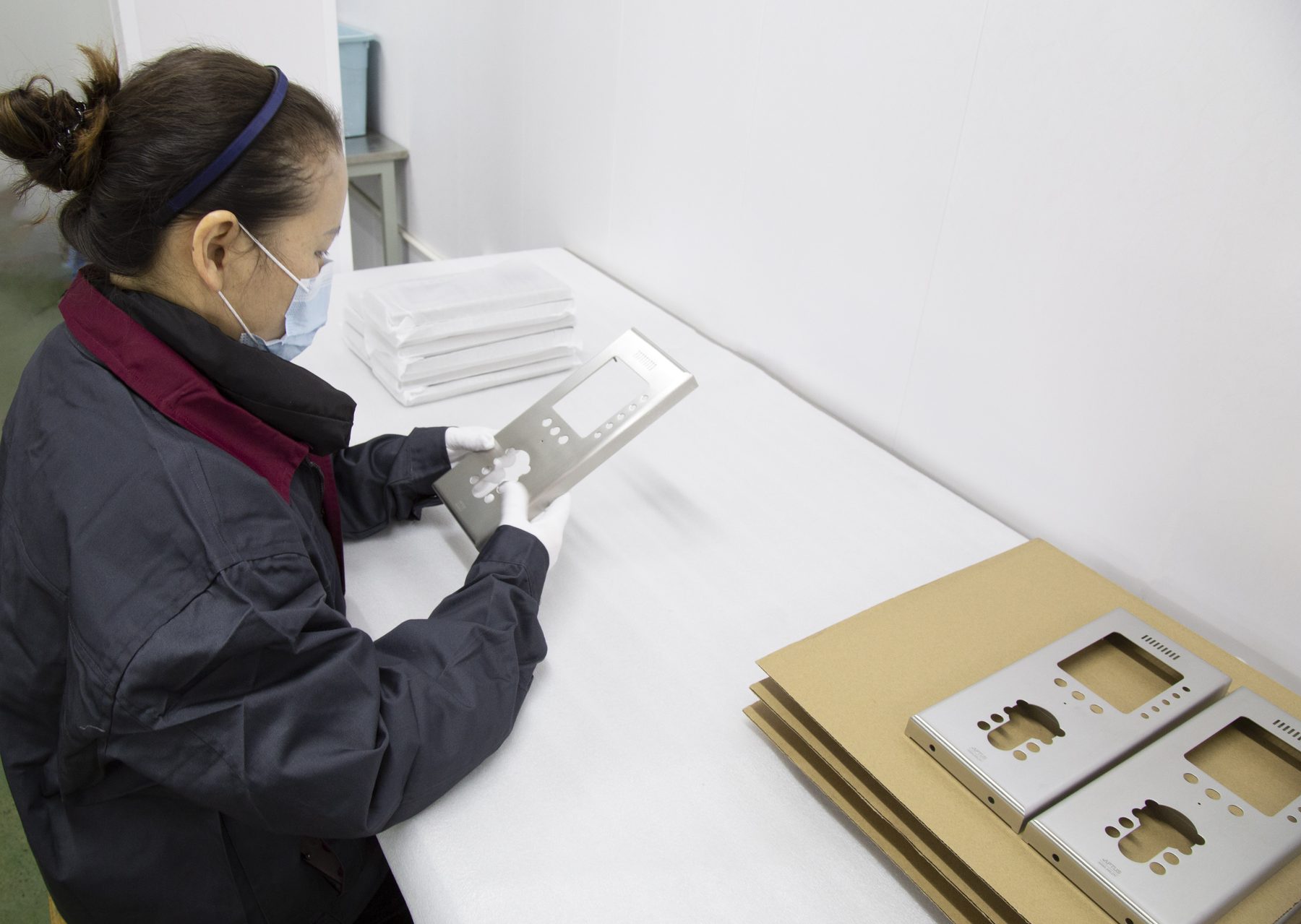

Every part is checked by a person, not just a machine.
The 3D projector verifies the dimension. Someone still puts the part under a light and looks at the finish — because a weld seam or a polish defect does not show up in a coordinate reading.
Live from the floor
Not a stock library. This is the plant.
Three unedited clips from our own lines — chrome plating, mirror polishing, and flatness inspection.
Quality management
Ten steps between your drawing and your dock.
Continuously audited by SGS and TÜV. Sample approval gates mass production — not the other way round.
Certifications — open the actual documents
- ISO 9001:2015Quality management
- ISO 14001:2015Environmental management

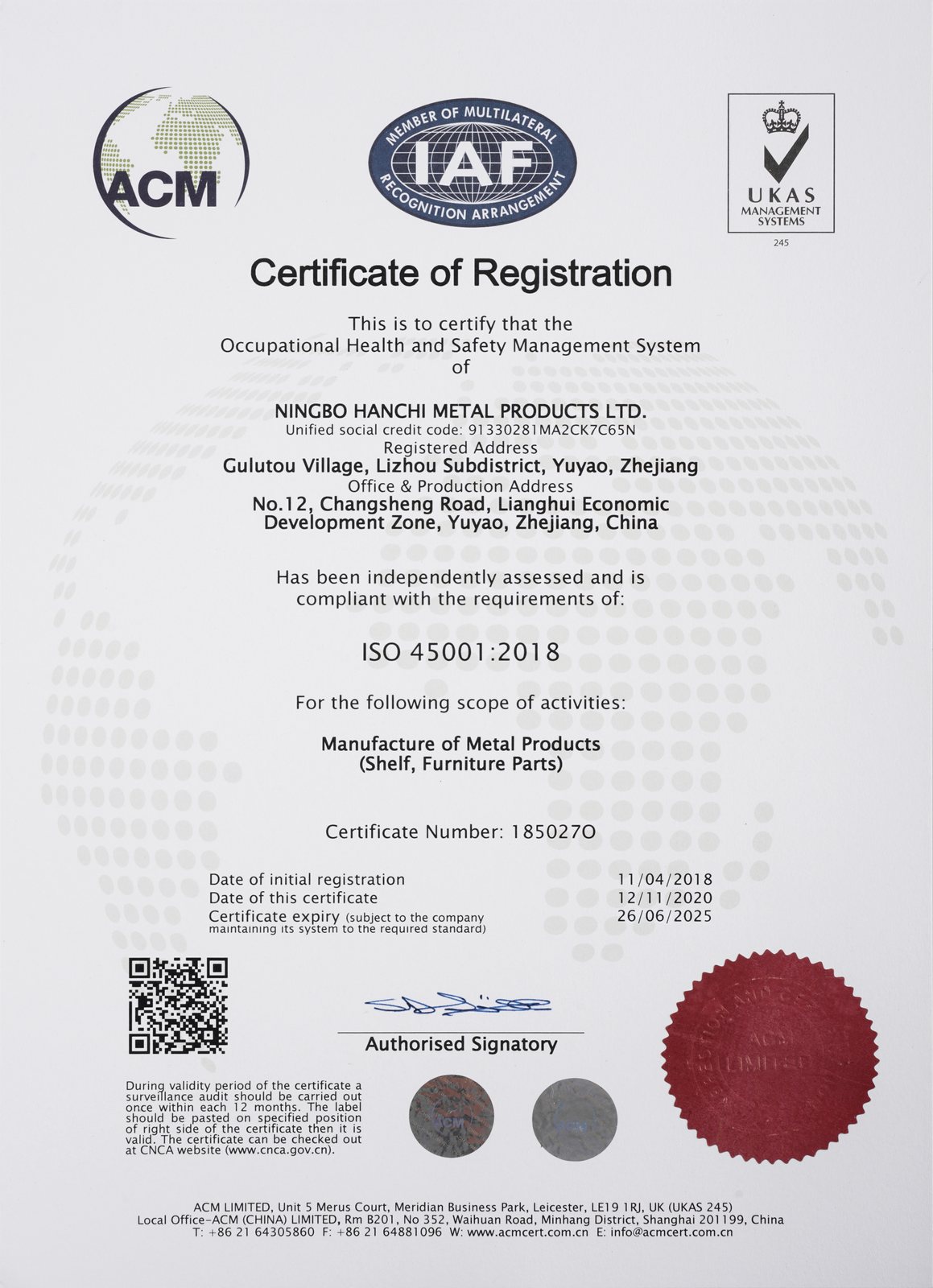

- ISO 45001:2018Occupational health & safety
- CEEU conformity
- UKCA & RoHSUK conformity · restricted substances
- SGS social auditThird-party facility audit
- TÜV quality reportThird-party inspection
Mill certificates available for every grade we run.
- Receive drawings in AutoCAD, SolidWorks, STEP or IGES
- Analyse the drawing — we flag production problems back to you
- Produce jigs and tooling in-house
- Develop inspection standards and protocols
- Produce samples for your approval
- On approval, lock the inspection standard
- Mass production with continuous QC inspection
- Final inspection
- Packing for product protection and low freight cost
- Shipping FOB Ningbo or Shanghai
Material grades
We quote in your standard, not ours.
Chinese GB grades mapped to the AISI, ASTM and AA designations your drawing actually calls out. Mill certificates available for all of them.
| Material | Grade (GB) | US / international equivalent | Mill cert | RoHS / REACH |
|---|---|---|---|---|
| Stainless steel | 201 / 304 / 316L |
AISI 201 / AISI 304 / AISI 316L |
Yes | Compliant |
| Brass | H59 / H62 |
C28000 / C27400 |
Yes | Compliant |
| Aluminium alloy | 6061 / 6063 |
AA 6061 / AA 6063 |
Yes | Compliant |
| Carbon steel | Q195 / Q235 |
ASTM A283 / ASTM A36 |
Yes | Compliant |
Commercial terms
The answers you were going to email us for anyway.
Most suppliers make you ask. Here they are.
Industries served
We have probably already made your part.
Kitchen & bath
Stainless bath fittings, sink components, brass faucet parts.
A US kitchenware brand — 60,000 pcs / year
US · EUFurniture & home
Table legs, connectors and architectural metal fittings for home goods.
A US furniture brand — 200,000 metal parts / year
US · EUAppliances
Housings, bases and structural metalwork for domestic appliances.
EUArchitectural hardware
Door and window hardware.
EUAutomotive
Metal fittings and components for automotive and transport.
EUElectronics & 3C
Precision metal parts for consumer electronics and communications.
EUThe company
Founded 2007. Owner-run since day one.
HanzPro is the precision-metal brand of Asia Flexproduction Ltd., founded in 2007 and owned by Mr Andy Panfeng ever since. Sixty-two people across Quality Control, Engineering, Production and Administration. Annual turnover around USD 8 million.
We have been an export business from the first year, and the United States and Europe have always been the main markets. That matters for one practical reason: your drawings, your tolerances, your certifications and your language are not new to this plant. They are the only ones it has ever worked in.
Plant
Shaoxing, Zhejiang, China
andypan@hanzpro.net
Request for quote
Send the drawing. We’ll tell you what it really costs to make.
Tell us what you need below, then email the drawing straight to our engineering team. An engineer reads it — not a sales desk.
- Reply within one business day, in English
- Full spec review, not a headline price
- We flag production problems before you commit
- Drawings kept confidential
Prefer email? andypan@hanzpro.net
